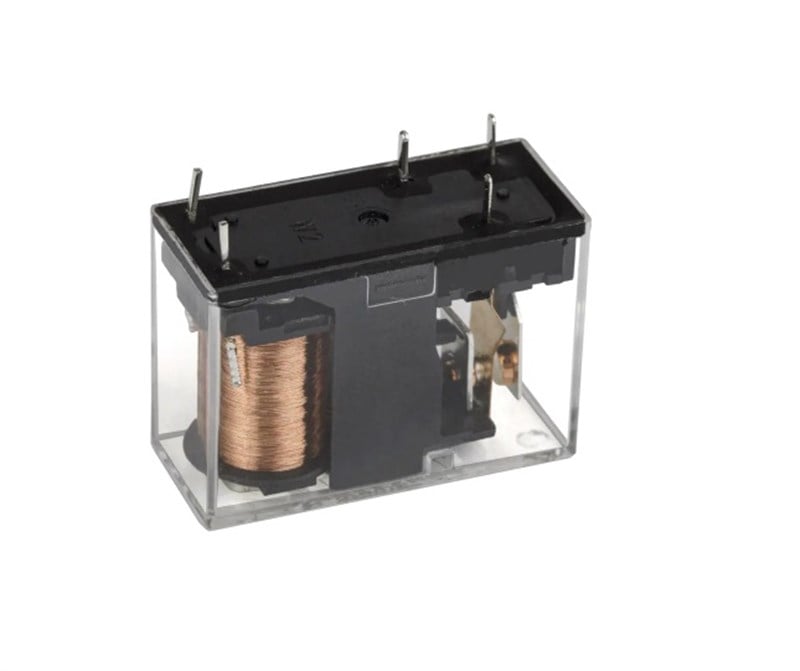

5V 10A Tek Kontak Röle HLS-14F1L-DC5V-C (İzmo7547)

Contact Form

1A /1C

Contact Material

Ag Alloy

Contact Ratings

10A240VAC/10A 30VDC

Max Switching Voltage

250VAC/110VDC

Max Switching Current

10A

Max Switching Power

2500VA/300W

Initial Contact Resistance

100m Ω Max at6VDC 1A

Life Expectancy Electrical

100,000 Operations (rated load)

Life Expectancy Mechanical

10,000,000 Operations (no load)

Insulation Resistance

1000M Ω Min at500VDC

Dielectric Strength Between Open Contacts

1000VAC 50-60HZ( 1 minute)

Dielectric Strength Between Contacts And Coil

5000VAC 50-60HZ( 1 minute)

Operate Time

15ms max

Release Time

8ms max

Ambient Temperature

-30 ℃ to+70 ℃

Shock Resistance

Malfunction

10G

Destruction

100G

Vibration Resistance

10-55Hz,1.5mm double amplitude

Ambient humidity

20-85% RH

Weight

Approx 13g

Safety Standard

TUV CE CQC

Rated Voltage (VDC)

Coil Resistance Ω ( ± 10% )

Max Operate Voltage (VDC)

Min Release Voltage(VDC)

Max Applied Voltage (VDC)

0.53W

0.72W

3

17

12.5

2.4

0.15

3.9

5

50

36

4

0.25

6.5

6

68

50

4.8

0.3

7.8

9

155

115

7.2

0.45

11.7

12

270

200

9.6

0.6

15.6

24

1100

820

19.2

1.2

31.2

48

4400

3300

38.4

2.4

62.4
